About ELECTROMAGNETIC SIEVE SHAKER

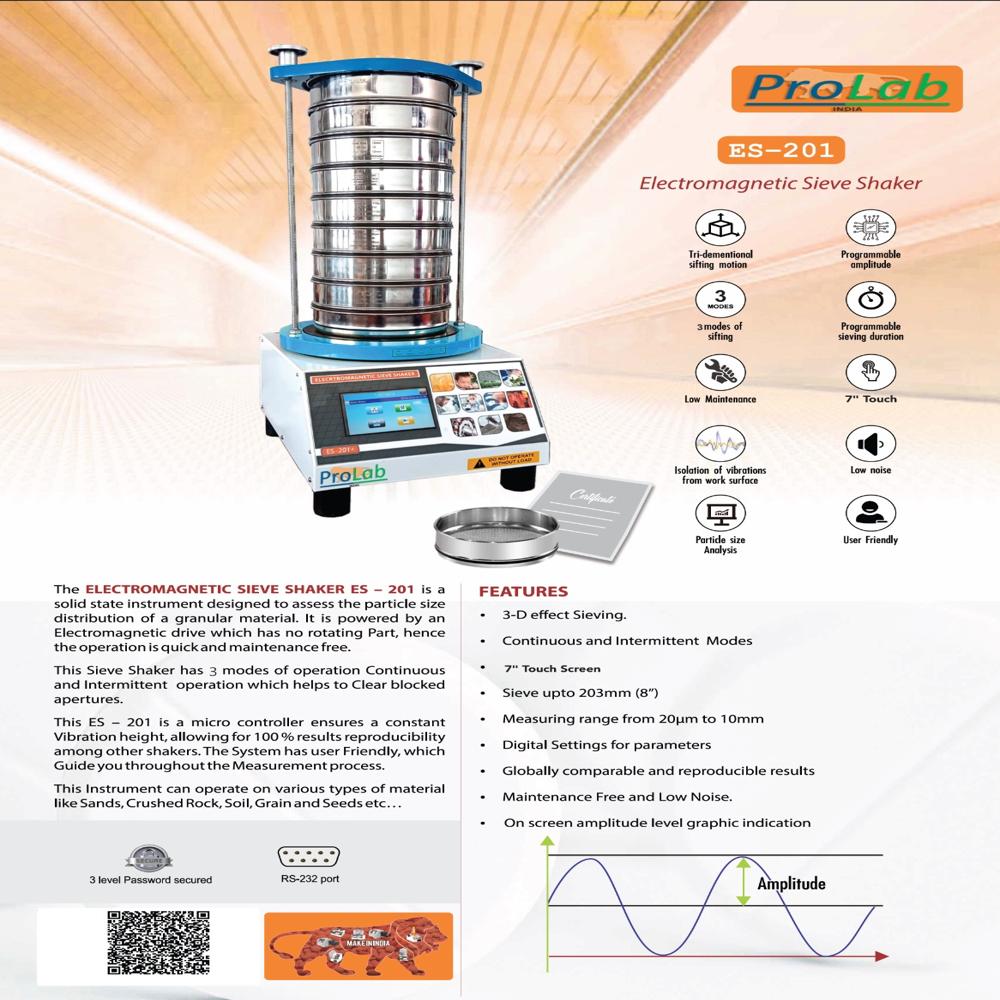

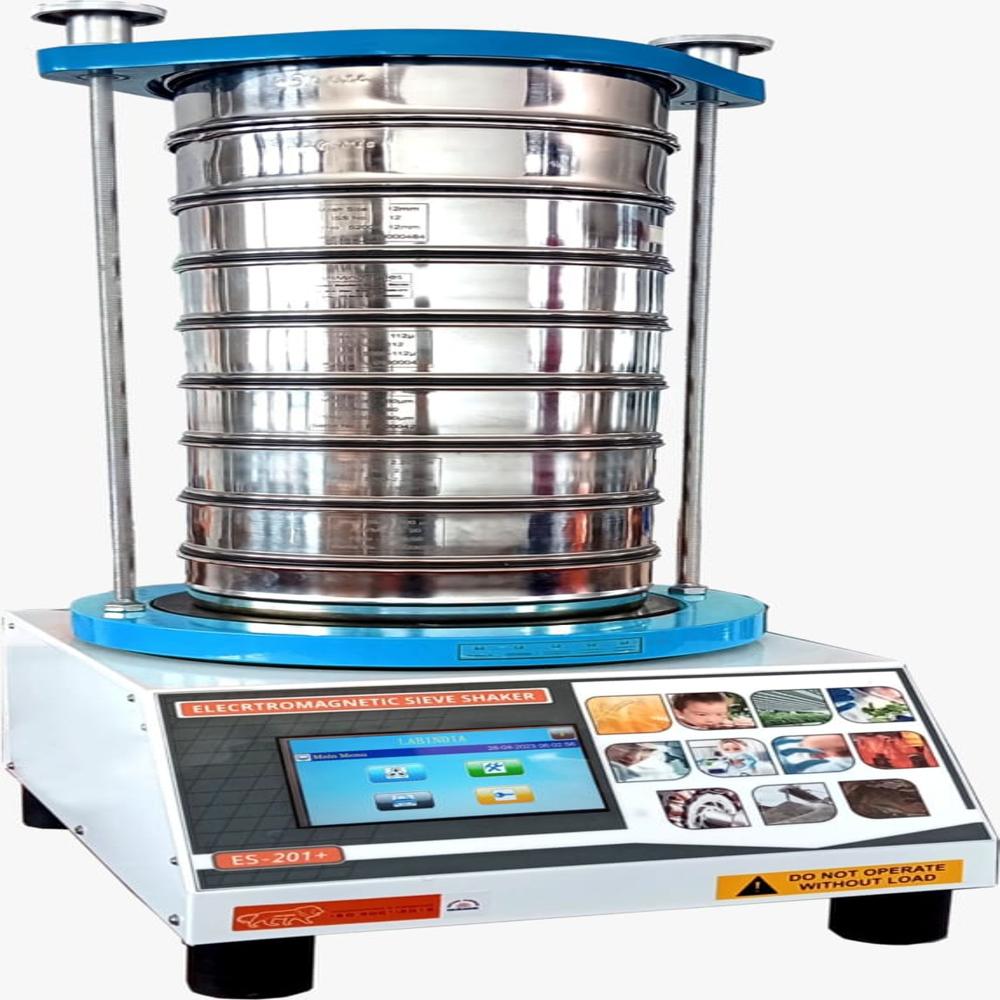

ES-201 Logic Electromagnetic Sieve Shaker is a high-performance particle size analysis instrument designed for accurate and reproducible sieving of powders, granules, chemicals, pharmaceuticals, food products, minerals, and laboratory samples. Equipped with a 7-inch touch screen display, the system offers advanced programmable operation modes including Continuous, Intermittent, and Logic Mode for precise control over the sieving process.
The instrument accommodates up to 8 sieves of 200 mm diameter or 16 sieves of 100 mm diameter, making it suitable for a wide range of laboratory and industrial applications. Its electromagnetic drive system generates a controlled throwing motion with angular momentum, ensuring efficient particle separation and highly reliable results.
Featuring programmable shake time (199 minutes), 20 power levels, and digital amplitude control from 0.2 to 2.5 mm, the ES-201 Logic delivers superior flexibility for different material types. The system supports a measuring range of 20 m to 10 mm, offers data storage for up to 20 test results, and can be connected to an external printer via USB interface for documentation and traceability.
Uniform Vibration for Reliable ResultsThanks to electromagnetic linear vibration and adjustable amplitude up to 3 mm, the shaker ensures even distribution of powder, granules, or aggregates across all sieves. This design prevents sample congestion and delivers reproducible gradation results for accurate laboratory analysis.
Intuitive and Programmable OperationEquipped with a touchscreen digital control panel and programmable timer (1 second to 99 minutes), the sieve shaker offers fast setup, easy adjustments, and intuitive operation. Digital display allows real-time monitoring and rapid response with programmable test parameters.
Durable, Safe, and Efficient BuildConstructed with a powder-coated steel body and acrylic touch panel, the machine delivers anti-rust performance and consistent operation. Safety features include overload protection and automatic stop, while the benchtop design facilitates easy integration into laboratory workflows and ensures operator safety.
FAQ's of ELECTROMAGNETIC SIEVE SHAKER:
Q: How does the electromagnetic sieve shaker achieve even sample distribution?
A: The shaker utilizes electromagnetic linear vibration, which provides uniform energy distribution across the sieve stack. This vibration type prevents particle build-up and promotes consistent movement of powders, granules, or aggregates, resulting in accurate particle size separation.
Q: What types of materials and industries is this device suitable for?
A: It is compatible with powders, granules, aggregates, chemicals, and pharmaceuticals. Common applications are found in laboratories for cement, chemical, aggregate, and food industries, where precise particle size analysis and sample gradation are necessary.
Q: How do I operate and program the timer for tests?
A: Operation is controlled via a 7-inch TFT touchscreen panel. The programmable timer allows you to set test durations between 1 second and 99 minutes with 1-second resolution, ensuring precise control and replicable testing conditions.
Q: When should the overload protection feature be used or checked?
A: The overload protection feature is an inherent safety mechanism that automatically stops the device during motor strain or an overload situation. It requires no manual activation, but routine equipment checks are recommended to ensure all safety features function optimally.
Q: Where can this sieve shaker be mounted, and what are the environmental requirements?
A: Designed as a benchtop device, it suits standard laboratory benches. The device operates reliably in conditions ranging from 5C to 40C and up to 90% relative humidity (non-condensing), making it ideal for most indoor laboratory environments.
Q: What is the maximum sample capacity and sieve configuration?
A: The shaker supports up to 2 kg of sample material and accommodates up to 7 sieves per stack, with each sieve holding specimens up to 200 mm in diameter. This flexibility is ideal for comprehensive particle size analysis in one test cycle.
Q: What are the benefits of using this electromagnetic sieve shaker over traditional mechanical models?
A: Unlike mechanical shakers, this model features no moving parts in its vibration system, resulting in low noise (below 65 dB), minimal wear, and uniform vibration. Digital controls allow easy operation, precise timing, automatic test execution, and high reproducibility, ensuring efficiency and consistent analytical results.
